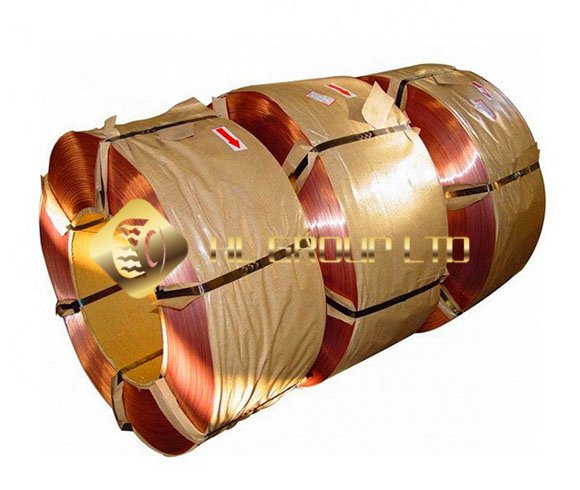

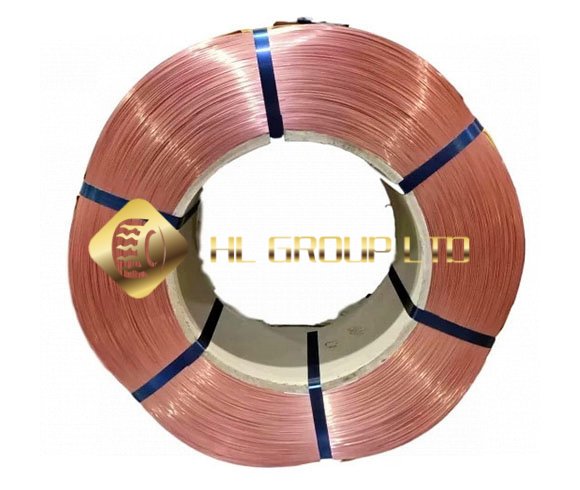

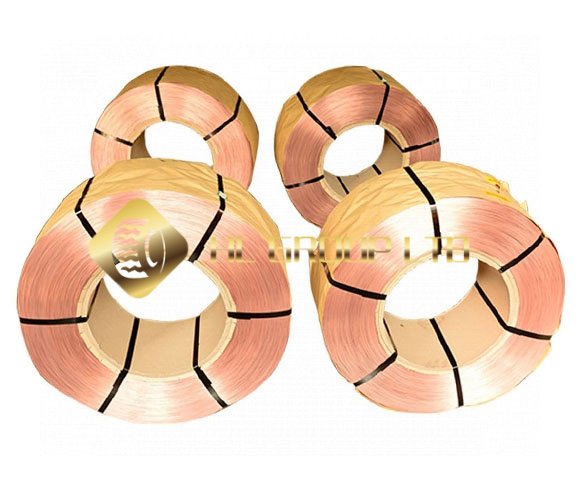

Bead Wire 1.00mm HT

Bead Wire is made by high carbon steel, which is widely applied to manufacture various tyres for automobiles, motorcycles, trucks as well as other vehicles .It is the important material of tyres, which can strengthen the tyres.



Description:
Bead wire
Bead Wire is made by high carbon steel, which is widely applied to manufacture various tyres for automobiles, motorcycles, trucks as well as other vehicles .It is the important material of tyres, which can strengthen the tyres.
Characteristics:
1.High Adhesion
2.High Tensile Strength
3.Good Tenacity
4.Good Quality and Competitive Price
Packing :

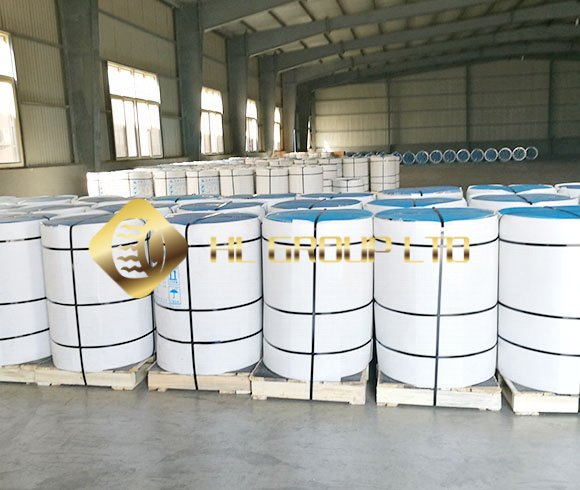

400kgs/ coil, 1200kgs/ pallet. 25tons for 20fcl.
Applications:
Widely applied in car tires, light truck tires, cargo truck tires, heavy equipment tires and plane tires.
Specification:
High Tensile Strength:

0.78mm 0.89mm 0.96mm 1.00mm 1.30mm 1.42mm 1.65mm 1.80mm 1.83mm 2.03mm etc.
Normal Tensile Strength:

0.78mm 0.89mm 0.96mm 1.00mm 1.30mm 1.42mm 1.65mm 1.80mm 1.83mm 2.03mm etc.
Note:

The above are general technical specifications, which can be adjusted according to customer’ requirements.


Dia.mm0.890.961.31.551.61.83
Tolerancemm±0.02±0.02±0.02±0.025±0.025±0.03
breaking strength≥kgf136156280385410515
elongation≥%555555
Yield strength≥%858585858585
Torsiontimes(100d)≥50≥20≥20≥20≥20≥15
Residual torsion°/9m≤360°≤360°≤360°≤360°≤360°≤360°
straightnesscm/3m≤40≤40≤40≤30≤30≤20
Mass coatingg/kg0.47±0.050.44±0.050.32±0.050.27±0.050.26±0.050.23±0.05
Sn %1.5±0.51.5±0.51.5±0.51.5±0.51.5±0.51.5±0.5
 Remark: torsion standard for 0.89mm is L=200d
